PSS 3.1: Target Code

• PSS
• Open Source EDAs

A PSS description has two fundamental ways of interfacing with a platform: by specifying the APIs to call, or the code to generate. We’ll talk more about the API-based approach in the next post, but for now we focus on what’s new with target-code generation in PSS 3.1. A significant number of changes emphasizes how important this use model continues to be.

How target-code generation works

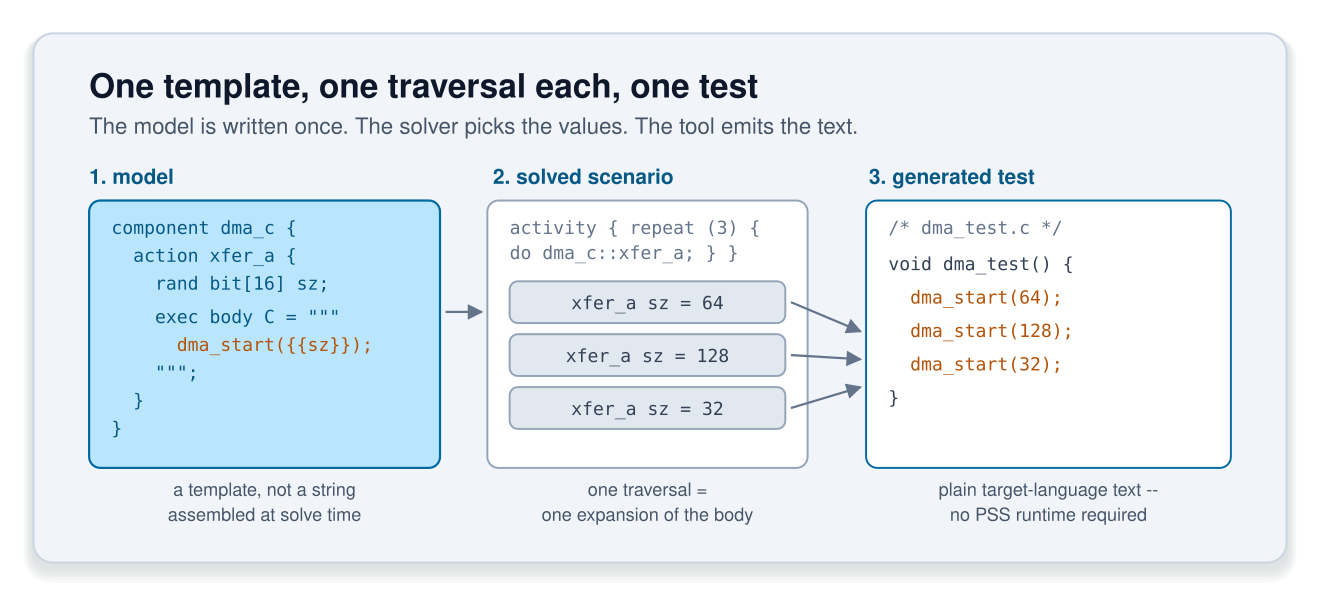

The mechanism straightforward: an action or flow object carries a snippet of target-language code – C, assembly, a script, whatever the platform speaks – and that snippet may reference the action’s attributes. The tool solves the scenario, then walks the traversals and expands one copy of the snippet per traversal, substituting the values the solver chose.

component dma_c {
    action xfer_a {
        rand bit[16] in [1..1024] sz;

        exec body C = """
            dma_start({{sz}});
        """;
    }

    action test_a {
        activity {
            repeat (3) { do xfer_a; }
        }
    }
}

Three traversals of xfer_a, three expansions of its body:

dma_start(64);
dma_start(128);
dma_start(32);

What comes out is ordinary target-language text. There’s no PSS runtime on the other side, which is exactly why this use model persists in environments where you can’t link a library and call into it – bare-metal bring-up, boot code, assembly-level tests.

The corollary is that the model has to specify everything the generated code needs to contain. That’s where 3.1 does its work: the 3.0 mechanism was good at substituting values into a flat always-emitted template structure and awkward otherwise. PSS 3.1 significantly improves the ergonomics of exception cases.

Template strings

In 3.0, mustache notation was restricted to target-template exec blocks. In 3.1 it’s a feature of triple-quoted strings (4.7.1), and target-template exec blocks are simply one of the places those appear. Substitution works the same way in any string expression, so the same notation shows up in message(), in a string attribute, in a constant initializer – and, usefully, in the filename of an exec file block.

static const int    NCHAN  = 4;
static const string BANNER = """dma: {{NCHAN}} channels""";

component dma_c {
    action dump_a {
        rand bit[4] fileid;
        rand bit[8] data;

        // the filename is a template too, so each traversal picks its file
        exec file """dma_{{fileid}}.dat""" = """data: {{data}}""";

        exec post_solve {
            message(LOW, """dumping {{data}} to file {{fileid}}""");
        }
    }
}

The exec file line is the one worth pausing on. Pre-3.1, an action type wrote to one statically-named file, and splitting output per-traversal meant generating everything into one place and post-processing it. Now the file a traversal writes to is a function of its solved values.

Worth knowing (4.7.1, 4.7.1.1):

• Substituted expressions must be scalar-typed, and any function they call must be pure. Formatting is by type: int as signed decimal, bit as unsigned, bool as true/false, an enum as its enumerator identifier. That last one is what makes {{kind}} usable as part of a generated function name.
• In an exec block, expansion happens after pre_body completes. In a string expression, it happens when the expression is evaluated – so a string built in a procedural context captures the values as of that moment.
• A triple-quoted string that references only constants is itself a constant. One that doesn’t, isn’t, and can’t be used where a constant is required.
• Comments finally have somewhere to live. {# ... #} spans lines and {#} runs to the end of the line; neither reaches the generated text, and special elements inside a comment are not expanded. That’s the notation you want for commenting out a block of template that contains mustaches.

Controlling uniqueness

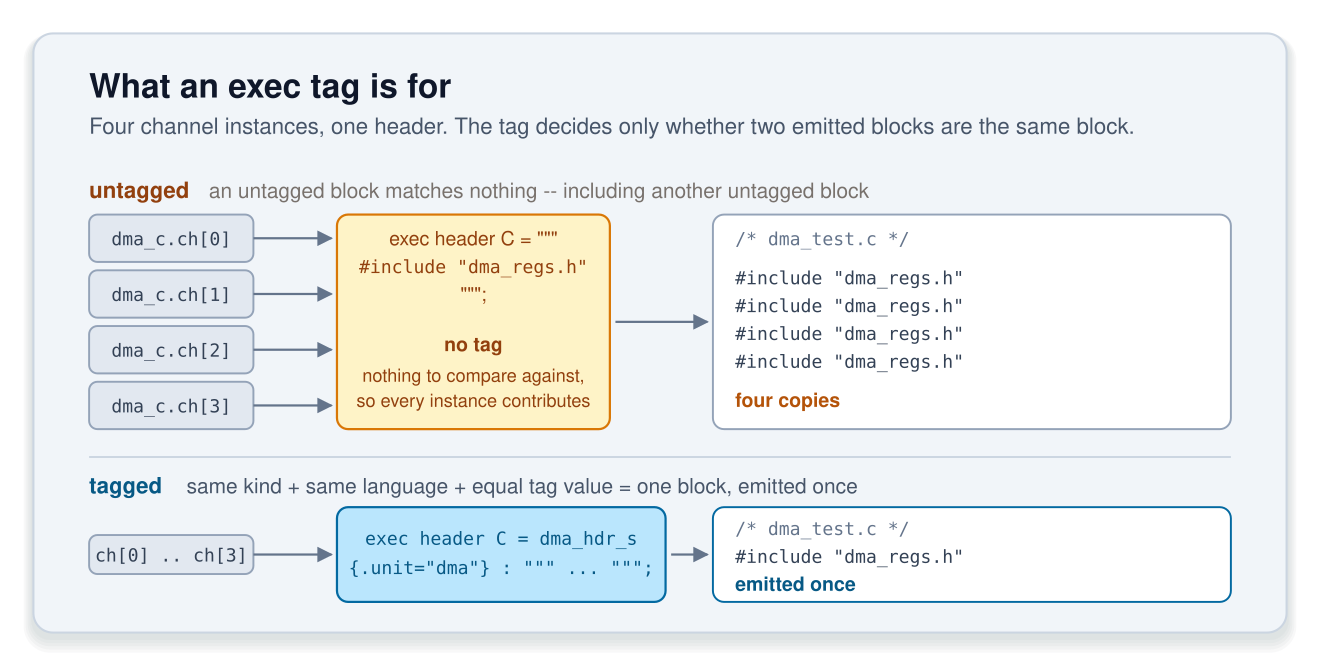

Some generated content belongs to the test, not to the traversal. A header include, a static helper, a boot stub. The natural place to declare it is the action or component that needs it – but actions run many times, and an exec header on a component instantiated four times contributed its text four times. The workaround was to hoist the declaration up to some singleton scope, which put the code that needs a helper and the code that declares it in different files.

PSS 3.1 adds an exec block tag (20.5.4): a struct value attached to the exec block, whose only job is to decide whether two emitted blocks are the same block.

struct dma_hdr_s { string unit = "dma"; }

component chan_c {
    exec header C = dma_hdr_s {.unit = "dma"} : """
        #include "dma_regs.h"
    """;

    action prog_a {
        rand bit[16] sz;
        exec body C = """dma_start({{sz}});""";
    }
}

component dma_c {
    chan_c ch[4];
}

Four channels, one #include. And because the tag is a struct value, not a name, deduplication can be per-value rather than all-or-nothing – a header tagged with a solved attribute is emitted once per distinct value of that attribute:

enum   cache_op_e  { CLEAN, INVALIDATE, CLEAN_INVALIDATE }
struct cache_op_tag { cache_op_e kind; }

action cache_op_a {
    rand cache_op_e kind;
    rand bit[64]    addr;

    exec header C = cache_op_tag {.kind = kind} : """
        static inline void cache_op_{{kind}}(uint64_t addr) { /* ... */ }
    """;
    exec body C = """cache_op_{{kind}}({{addr}});""";
}

Traverse that action three times with kind solving to CLEAN, CLEAN, INVALIDATE and you get two helper definitions and three calls.

Worth knowing (20.5.4):

• The tag affects code generation only. Not traversal, not solving, not runtime behavior. It is not a mechanism for choosing between implementations.

• Two blocks match when they have the same exec kind, the same target language, the same target execution unit, the same tag struct type, and equal tag values. An exec file block matches on filename plus tag. Matching ignores declaration scope: blocks in unrelated action or component types can match.

• An untagged block matches nothing – including another untagged block. That’s what keeps the feature backward compatible.

• If two matching blocks generate text that differs by so much as a character, that’s an error, not a silent pick. Worth knowing before you tag something whose template still contains a per-traversal attribute.

• Tags are permitted on header, declaration, run_start, run_end and exec file – the blocks that decide where generated code lands. Not on body, which runs once per traversal and so has nothing to deduplicate:

  $ pssparser --no-color bad-exec-tag.pss
  bad-exec-tag.pss:11:28: error: exec block tag is not permitted on 'body' exec blocks
   11 |             exec body C = dma_hdr_s : """dma_start({{sz}});""";
      |                            ^

  1 error in 1 file

Generative content

Substitution fills holes in a fixed shape. Real generated code doesn’t have a fixed shape: the number of descriptors depends on a solved value, the interrupt setup is there or it isn’t. Pre-3.1 the answer was to assemble the text in a post_solve exec by string concatenation, then substitute the result – which means the generated code’s structure lives in procedural PSS rather than in anything that looks like the code being generated.

PSS 3.1 adds control-flow directives in {% ... %} delimiters (4.7.1.2). If you’ve written a Jinja2 or Mustache template, this is the model you already have – with the difference that the statements and expressions between the delimiters are PSS, evaluated against the solved model.

action prog_a {
    rand int in [1..4]    nchunks;
    rand array<bit[32],4> chunk;
    rand bool             irq;

    exec body C = """
        {# One program call per chunk, then start the engine. #}
        {% foreach (c : chunk) %}
        dma_program_chunk({{c}});
        {%%}
        {% if (irq) %}
        dma_enable_irq();
        {%%}
        dma_start();
    """;
}

The template now reads like the C it emits, with the variable parts marked. Compare that against the same logic expressed as string concatenation in a post_solve block and the argument makes itself.

Worth knowing (4.7.1.2):

• The directive set is if / else if / else, repeat, foreach, local variable declaration, and assignment. Every block closes with a bare {%%}.
• foreach takes an iterator, an index, or both, and repeat takes an optional index – so the generated code can reference the loop position, not just the element.
• Expressions inside a directive are written bare – no mustaches. Mustache notation is for emitting a value; a directive is already an expression context.
• A line containing only directives and whitespace contributes nothing to the output, newline included. That’s what lets you indent the template for readability without indenting the generated code.
• Assignment reaches template-local variables only. You can’t write back to an action attribute from a directive, and the same restriction has always applied to mustache notation: a substitution is a read.

Conclusions and providing feedback

Target-code generation isn’t new in PSS, and that’s the point: it’s a use model with enough real deployment behind it that the 3.1 changes read as a list of accumulated workarounds being retired. Templates that describe their own structure instead of being assembled by string surgery. A file name that can depend on what was solved. And a defined answer to “this belongs in the test exactly once.”

Here’s what I’d suggest thinking about while reading Clause 4.7 and Clause 20 of the draft:

• How do your tests integrate with the environment today – generated code, API calls, or both? It’s genuinely useful for the working group to know how the split falls in practice, because it’s what tells us where to spend effort.
• Find the place where you’re assembling target code with string concatenation and rewrite it with control-flow directives. Does the directive set cover it, or did you need something that isn’t there?
• Take the content you currently hoist into a singleton scope to keep it from being emitted repeatedly, and put it back where it belongs with a tag. Does the matching rule do what you expected? Is “identical text or error” the behavior you want?
• Look for cases where these features don’t go far enough. Partial coverage is worth reporting. A feature that solves 80% of your case is more useful to hear about than one that solves none of it.

It takes a community to build a standard, and your eyes and attention are a much-appreciated contribution! And, as a reminder, the review closes at the end of September.
